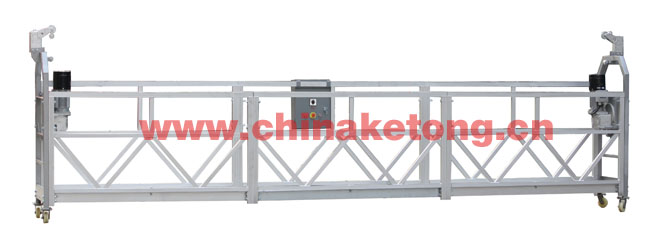

630 Aluminum |
| |
|
|
|

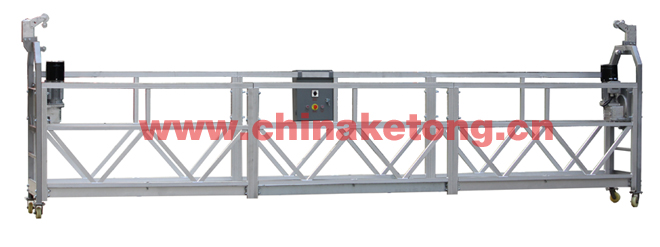

630 HDG |
| |
| ◎ Main parts |
| |
| 1.Lifting suspension mechanism and counter weight |
| |
| The height of the platform can be within 1150-1800mm with arm which can be stretched out and drawn back, it can be widely used parapet and complicated building in different, height, and we can also supply customized platform to meet different requirement from the customers. |
| |
|
Technical Parameters |
| |
|
Protrusion of front beam |
1500×1800mm |
|
Rated Lifted load |
8KN×2 |
|
Distance between front support and ground |
1200mm |
|
Max distance between front support to the rear one |
4600mm | |
| | | |
| ◎ ZLP630 Technical Parameters |
| |
|
1 |
Model |
ZLP630 |
|
2 |
Rated load |
630kg |
|
3 |
Lifting speed |
9.6m/min+0.5 |
|
4 |
LxWxH |
(2000×3)× 690×1180mm |
|
5 |
Length of platform |
1m—-6m |
|
6 |
Standard length |
6m(2m×3) |
|
7 |
Motor power |
2×1.5kw |
|
8 |
Brake torque |
15Nm |
|
9 |
Adjusted rang of lock angle |
3。-8。 |
|
10 |
Rope lock distance |
≤100mm |
|
11 |
Protrusion of front beam |
1500mm |
|
12 |
counter weight |
25kg×36pcs |
|
13 |
steel rope Dia. |
8.3mm |
|
14 |
steel rope Dia. |
100m |
|
15 |
Rated rotation speed |
1420r/min |
|
16 |
Voltage |
380V |
|
17 |
Frequency |
50HZ | |
| | |
